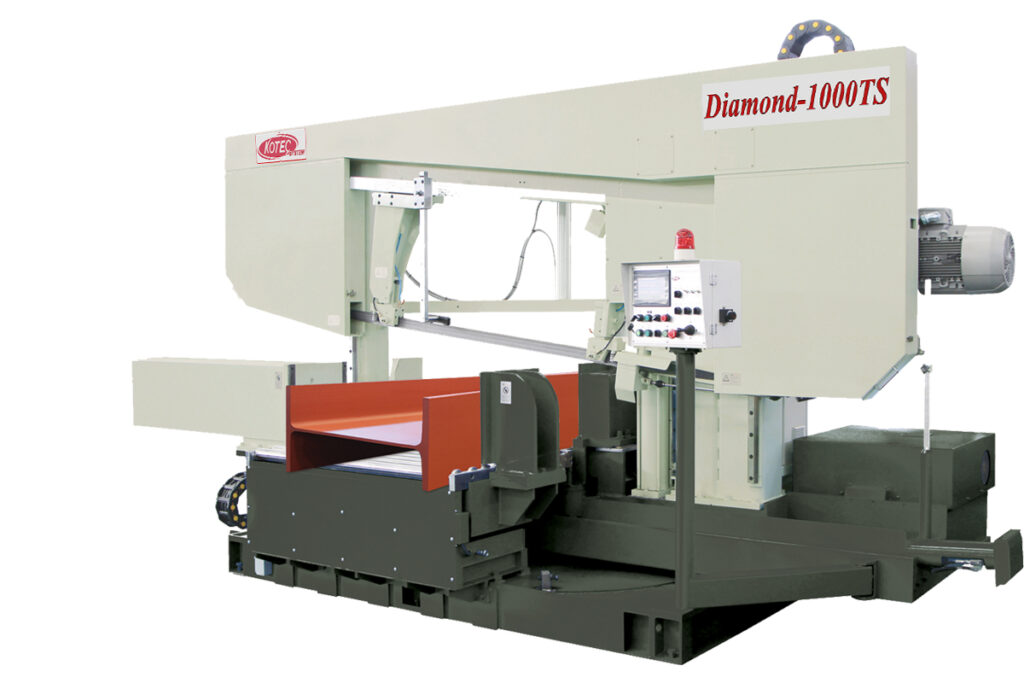

BAND SAWING MACHINE (Servo control)
Features
Significantly high cutting speed (servo-controlled cutting)
Capable of cutting up to a maximum of 45° (digitally controlled angle)
Stable cutting using LM (Linear Motion) guides
Specifications
| MODEL | DIAMOND–1300TS | DIAMOND–1000TS | DIAMOND–800TS |
|---|---|---|---|
| Round(Φ) | Φ600 | Φ650 | Φ580 |
| Capacity | |||
| Square(W×H) | 90° 1,300×600mm45° 750×600mm | 90° 1,000×600mm45° 620×600mm | 90° 800×500mm45° 480×500mm |
| Bundle(W×H) | 1,300×430mm750×430mm | 1,000×430mm750×430mm | 800×300mm480×300mm |
| Blade speed | 20~90m/min | 20~90m/min | 20~90m/min |
| Saw blade | |||
| Blade size(W×T×L) | 67×1.6×9,700mm | 67×1.6×9,200mm | 54×1.6×8,000mm |
| Feeding stroke | 320mm | 340mm | 280mm |
| Dimension(W×L×H) | 5,400×2,560×2,600mm | 4,500×2,820×2,900mm | 4,100×1,860×2,650mm |
| Weight | 8,750kg | 6,850kg | 5,500kg |
