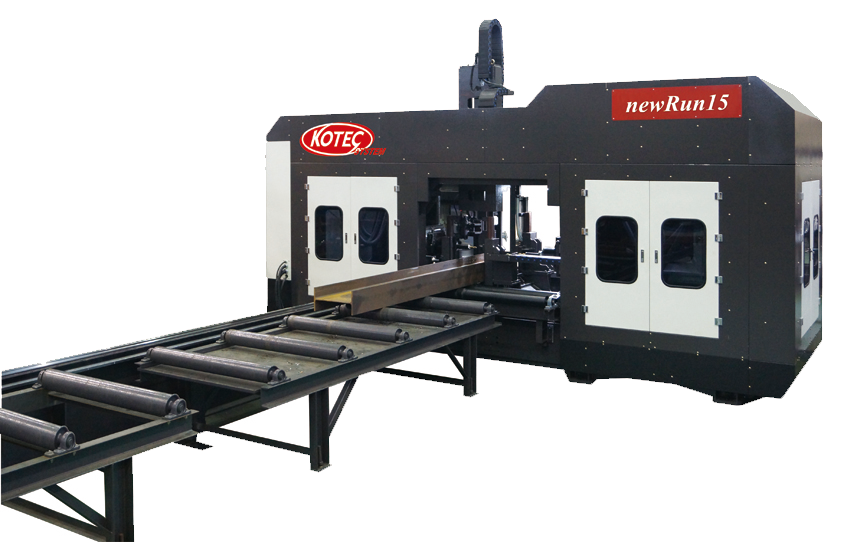

DX series BEAM DRILLING MACHINE

DX series BEAM DRILLING MACHINE

newRun Tandem Line Series

Features

  1. Fast drilling with tungsten carbide drill.

  2. 3 Spindles (simultaneous drilling in beam length direction).

  3. Easy data input and human interface system.

  4. Fast and precise material feeding by servo system – Carriage type.

Request a Quote

Specifications



MODELnewRun 15DXnewRun 13DXnewRun 10DXnewRun 7DX
Processing capacity
H300×150 – 1300×300mm150×75 – 1300×300mm125×60 – 1000×500mm100×50 – 780×400mm
LN/AN/AN/AN/A
B150×150 – 400×400mm150×150 – 300×300mm125×125 – 300×300mm75×45 – 300×300mm
Carriage stroke13m (Standard)13m (Standard)13m (Standard)13m (Standard)
Drill bit capacityOil hole, Tungsten carbide drill: Ø12–Ø40Oil hole, Tungsten carbide drill: Ø12–Ø40Oil hole, Tungsten carbide drill: Ø12–Ø40Oil hole, Tungsten carbide drill: Ø8–Ø32
Dimension (W×L×H)5,700×1,950×3,500mm (without carriage)5,700×1,950×3,500mm (without carriage)4,500×2,000×3,400mm (without carriage)5,000×1,700×2,500mm (without carriage)
Weight14,800kg12,500kg9,400kg7,700kg

NOTE: Specifications are subject to change for quality improvement.
