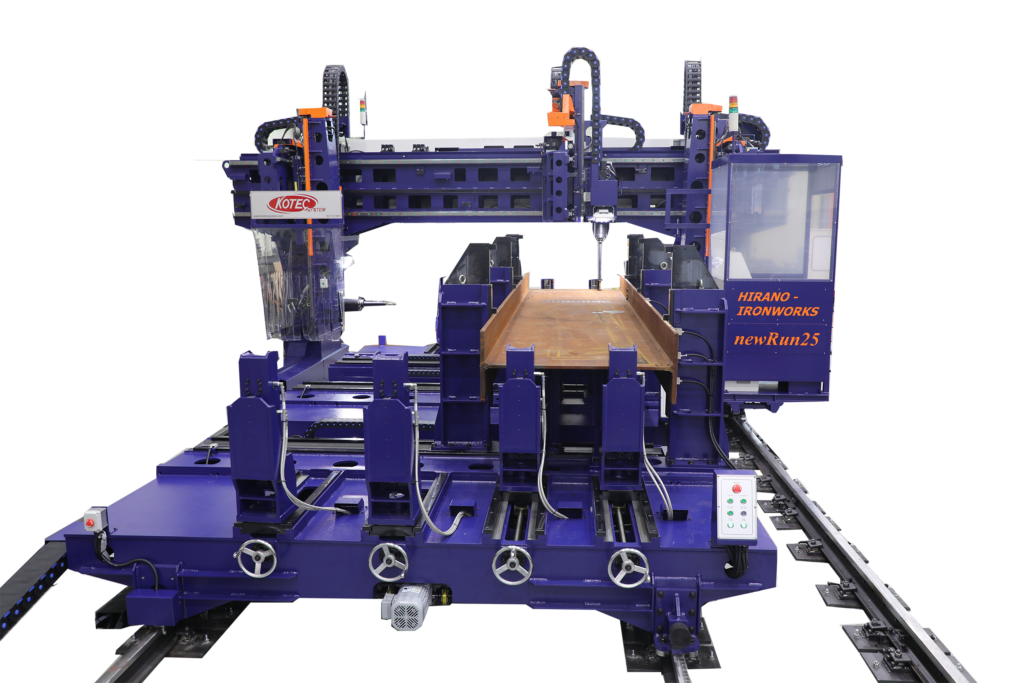

GANTRY TYPE MULTI BEAM DRILLING MACHINE
newRun 25
Features
Maximum working range: 2,500×1,200mm
Fast hole drilling enabled by the use of carbide drills
X-axis drill movement system (beam length direction)
Simple machining data input method applied
Simultaneous loading of two materials allows continuous hole drilling
| MODEL | newRun 25 |
|---|---|
| Processing Capacity | |
| Size | 600×200 – 2,500×1,200mm |
| Length | 2,500 – 16,000mm |
| Thickness | 9 – 70mm (WEB, FL) |
| Drill | Ø12 – Ø40 |
| Machine Structure | Gantry traveling (24,000mm) |
| Drill Spindle Motor | Built-in spindle motor (BT-50) |
| ATC (Auto Tool Change System) | N/A |
| Dimension (W×L×H) | 6,750×3,000×3,785mm |
| Weight | 14,000kg |
NOTE: Specifications are subject to change for quality improvement.
