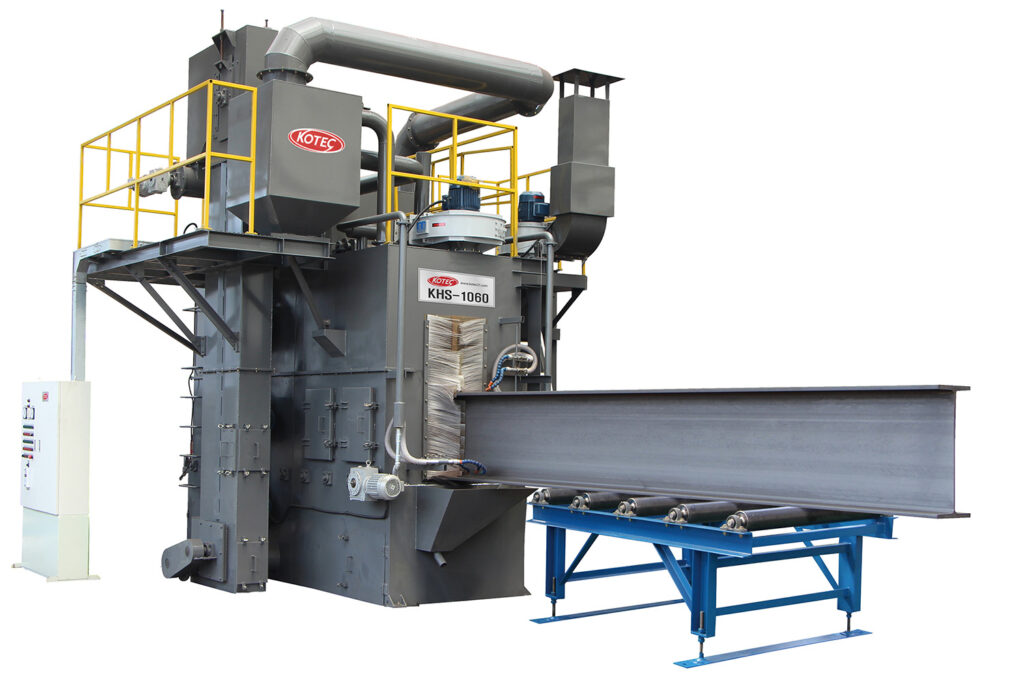

SHOT BLAST MACHINE
Features
Saving installation space by compact design of the machine
Fast & effective shot-blasting possible
Great efficient shot-blasting by powerful impeller
Installation without pit
Specifications
| MODEL | KSB–1050 | KSB–9040 |
|---|---|---|
| Material | H–BEAM & I–BEAM | |
| Capacity | H–1,000×500×12,000mm | H–900×400×15,000mm |
| Purpose | De-scaling | |
| Processing speed | Min 1~Max 3m/min | |
| Processing quality | SIS, B Sa2½ (at standard speed) | |
| Impeller unit | 6set (Ø270×10HP) | 4set (Ø270×10HP) |
| Dimension (W×L×H) | 3,500×4,000×5,000mm | 1,350×1,350×3,200mm |
