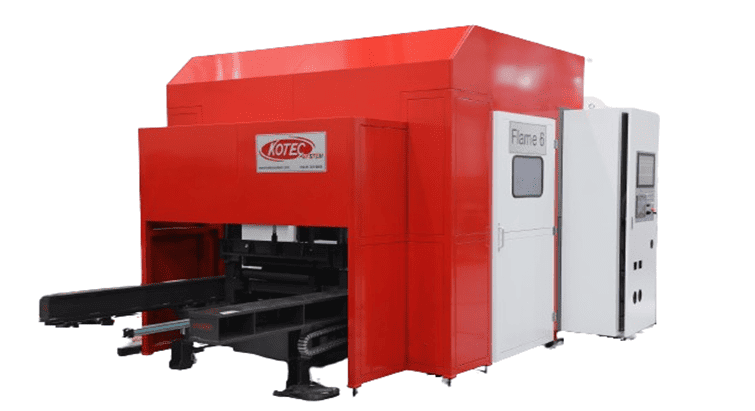

Robot Coping Machine
K-Master series
Features
Versatile shape processing are available by Complex functions such as Cutting, Hole Machining, Beveling, etc.
Request a QuoteIntegrated Processing Functions including Plasma Marking.
6-Axis Robot enable various Machining Shapes with Complex Shape and Pattern.
Lengthwise Cutting, Bevel Cutting, Wave Cutting, Taper Cutting, etc.
Database Support for Repeated Machining Patterns.
Specifications
| MODEL | K-master 13 | K-master 10 | K-master 7 |
|---|---|---|---|
| Processing capacity | |||
| H | 150×75 ~ 1,300×600mm | 125×60 ~ 1,000×500mm | 100×75 ~ 700×400mm |
| ㄷ | 150×75 ~ 380×100mm | 125×60 ~ 380×100mm | 100×65 ~ 380×100mm |
| □ | 150×150 ~ 300×300mm | 125×125 ~ 300×300mm | 100×100 ~ 300×300mm |
| L | 250×250 ~ 400×400mm | 125×125 ~ 400×400mm | 100×75 ~ 400×400mm |
| Carriage stroke | — | 125×60 ~ 1,050×550mm | — |
| Plasma power source | — | MAXPRO200A / XPR300 | — |
| Weight | 10,000kg | 7,000kg | 5,000kg |
NOTE: Specifications are subject to change for quality improvement.
