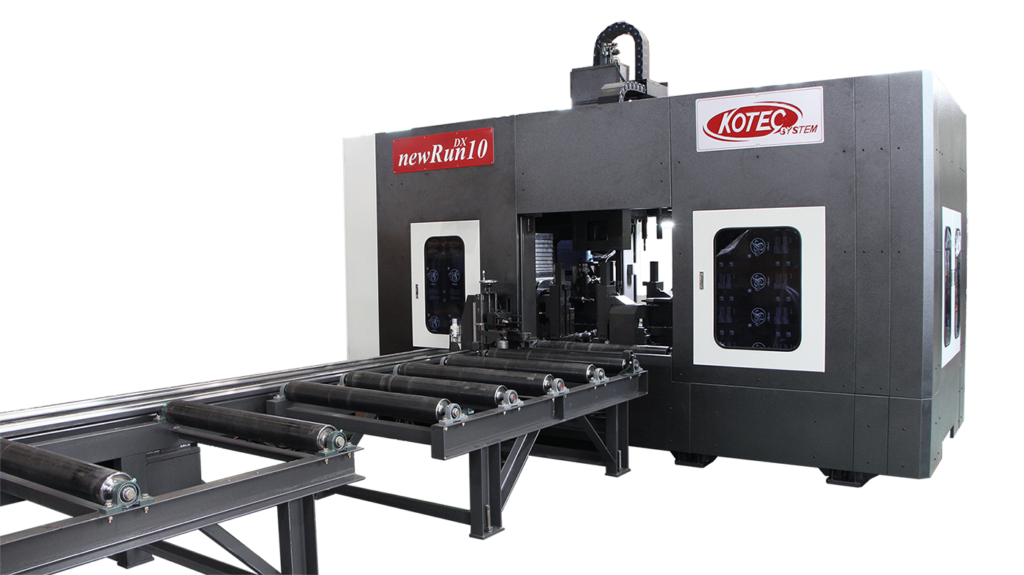

S series BEAM DRILLING MACHINE
newRun 10S
Features
Fast drilling with tungsten carbide drill
Adopts an easy and simple method for processing data input.
(Option: NC1, DXF file conversion program)Fast and precise material feeding by servo system – Carriage type
Capable of hole processing in three axes for various structural steel shapes
Specifications
| MODEL | newRun 13S | newRun 10S | newRun 7S |
|---|---|---|---|
| Processing Capacity | |||
| H | 150×75 – 1,300×600mm | 125×60 – 1,000×500mm | 100×50 – 700×400mm |
| n | 150×75 – 380×100mm | 125×65 – 380×100mm | 75×40 – 380×100mm |
| L | 150×150 – 300×300mm | 125×125 – 300×300mm | 65×65 – 300×300mm |
| o | 150×150 – 400×400mm | 125×125 – 300×400mm | 75×45 – 250×85mm |
| c | – | – | 13m (Standard) |
| Carriage Stroke | 13m (Standard) | 13m (Standard) | 13m (Standard) |
| Drill Bit Capacity | Oil hole, Tungsten carbide drill: Ø12–Ø40 | Oil hole, Tungsten carbide drill: Ø12–Ø40 | Oil hole, Tungsten carbide drill: Ø8–Ø32 |
| Dimension (W×L×H) | 5,000×1,850×2,950mm (without carriage) | 4,600×1,750×2,950mm (without carriage) | 4,200×1,750×2,900mm (without carriage) |
| Weight | 11,000kg | 7,900kg | 6,200kg |
