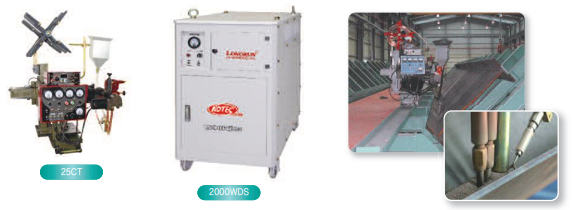

Submerged Arc Welding Machine
Features
Optimized for heavy material manufacturing
Uses high-quality materials (EGI plate)
Specifications
| Model | Input Volt | Input Capacity | No Load Volt | Output Current | Output Volt | Duty Cycle | Dimension | Weight |
|---|---|---|---|---|---|---|---|---|
| 1000WDS | 220V/380V/440V | 80KVA | 82V | 300~1000A | 12~48V | 80% @ Rated Output | 75×110×1550 mm | 415 kg |
| 1500WDS | 120KVA | 82V | 300~1500A | 18~52V | 800×1050×1400 mm | 700 kg | ||
| 2000WDS | 160KVA | 82V | 300~2000A | 18~52V | 800×1050×1400 mm | 720 kg |
